Elinchrom ELC Pro HD
Complete. Professional. Dependable. Creative.
The ELC Pro-HD Compacts 500 and 1000 are the world's most complete, feature-rich compact studio flash units. The result of over 50 years experience at the forefront of studio lighting technology. Designed and assembled at Elinchrom’s HQ in Switzerland the ELC benefits from the highest Swiss specification.
Everything you need in a professional flash unit:
- Lightning fast Recycling time (0.6s / 1.2s to full power, ELC 500w / ELC 1000w)
- Super fast flash durations (up to 1/5000s / 1/5260s, t0.5, ELC 500 / ELC 1000)
- The most accurate power stability
- Perfectly consistent colour temperature
- Proven reliability
- Unique EL "Creative Lighting Suite"

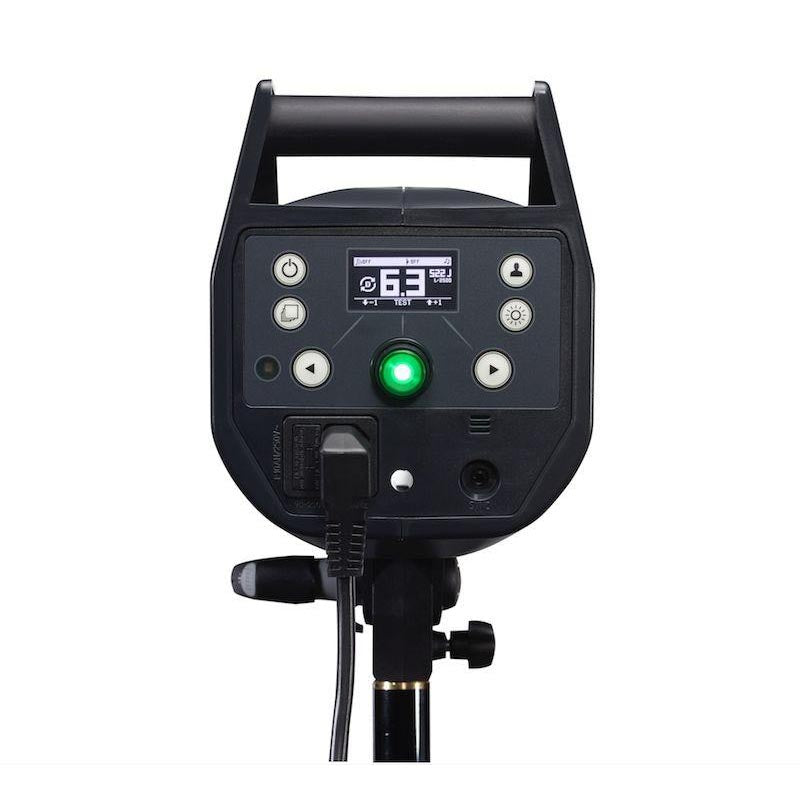

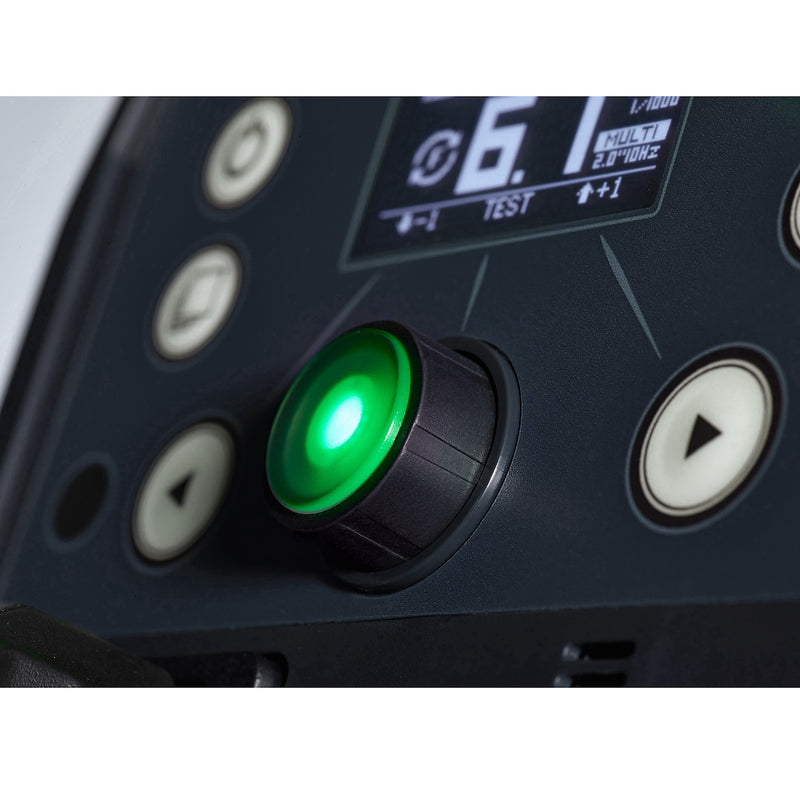

The Elinchrom ELC Pro HD Heads incorporate an OLED screen that displays every control. As well as Elinchrom’s stop based power scale, photographers will now be able to see the power in Joules, flash durations and many other settings.
EL "Creative Lighting Suite" - Three New Shooting Modes!
Sequence Mode - Allows you to sequentially trigger up to 20 ELCs, in bursts or as a continuous cycle, to utilise the high frame rate of your camera.
Delayed Mode - Provides the option of first or second curtain sync and everything in-between, plus predictive synchronisation within a short sequence.
Strobo Mode - Enables you to take a picture with stroboscopic effects within a single frame.
What's in the Box:

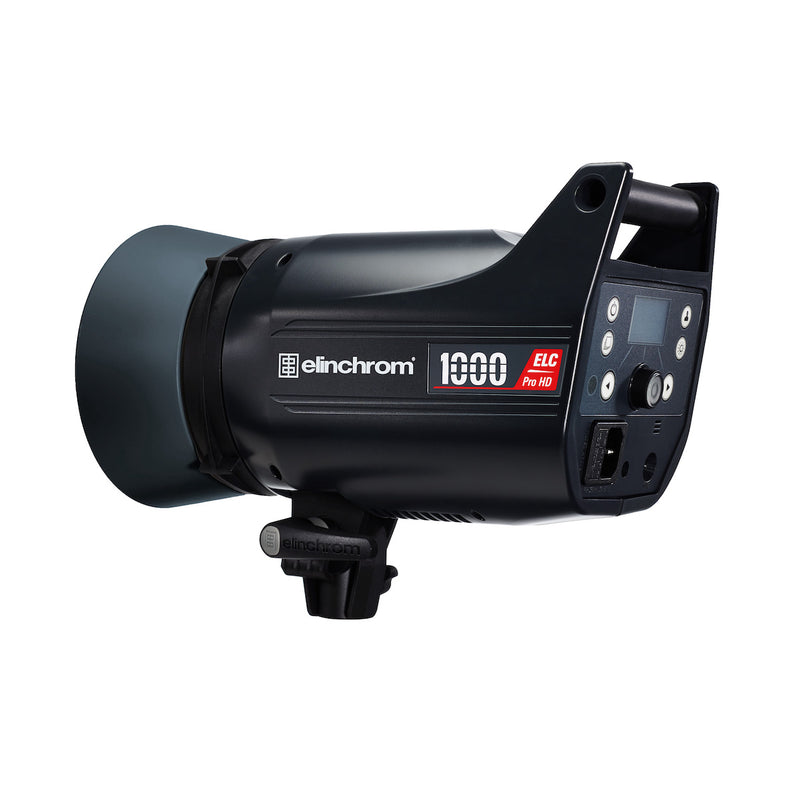

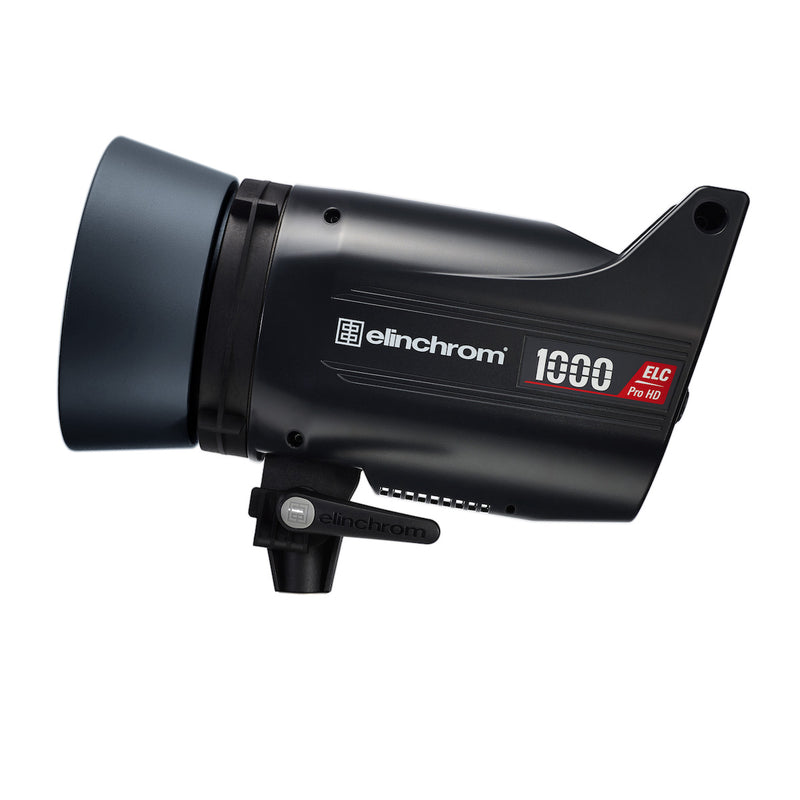

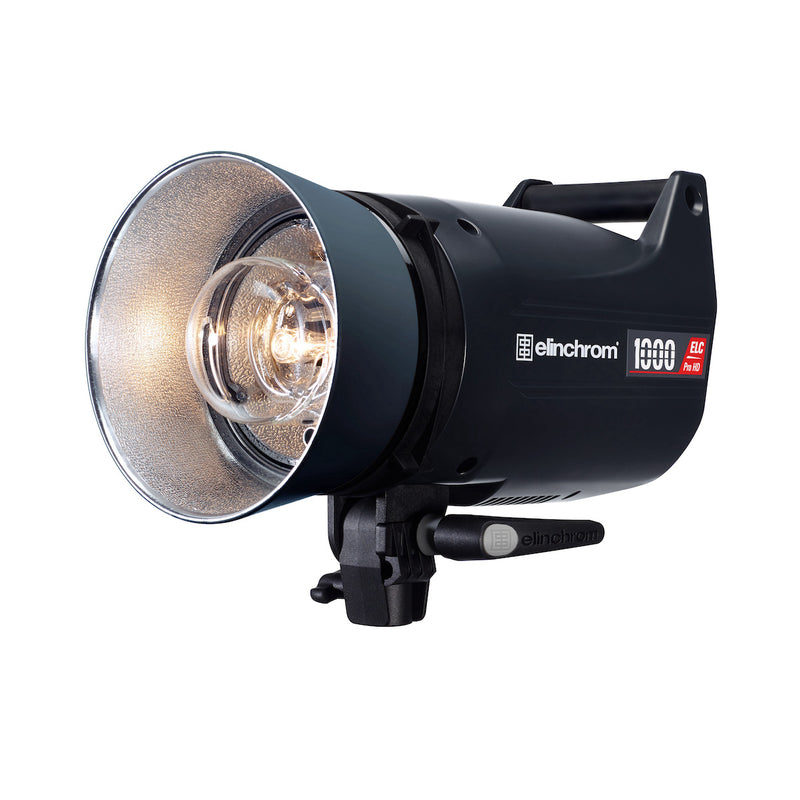

1x ELC Pro HD 1000 Head
1x 16cm Reflector
1x Transparent Glass Dome
1x Sync Cable
1x Mains Cable
Size: | 31.5 x 14 x 21cm |
Type: | Studio Flash Head |
Weight: | 2.9kg |
Power Ws: | 1044 |
Power Range Ws (Single Head): | 7-1044 |
Power Range (f stops): | 8 |
Power Range Display: | 0.1 - 7.3 |
Max Flashes Per Second: | 20 |
Power Source: | Mains |
Min Flash Duration s: | 1/5260 (t.05) |
Recycling time s: | 0.05 - 1.2 |
Colour Temp °K: | 5500 |
Input Voltage: | Multi-voltage 90-265 v |
Sync Voltage: | 5V (Compatible with all cameras) |
Sync Socket: | 3.5mm Jack |
Number of Heads: | 1 |

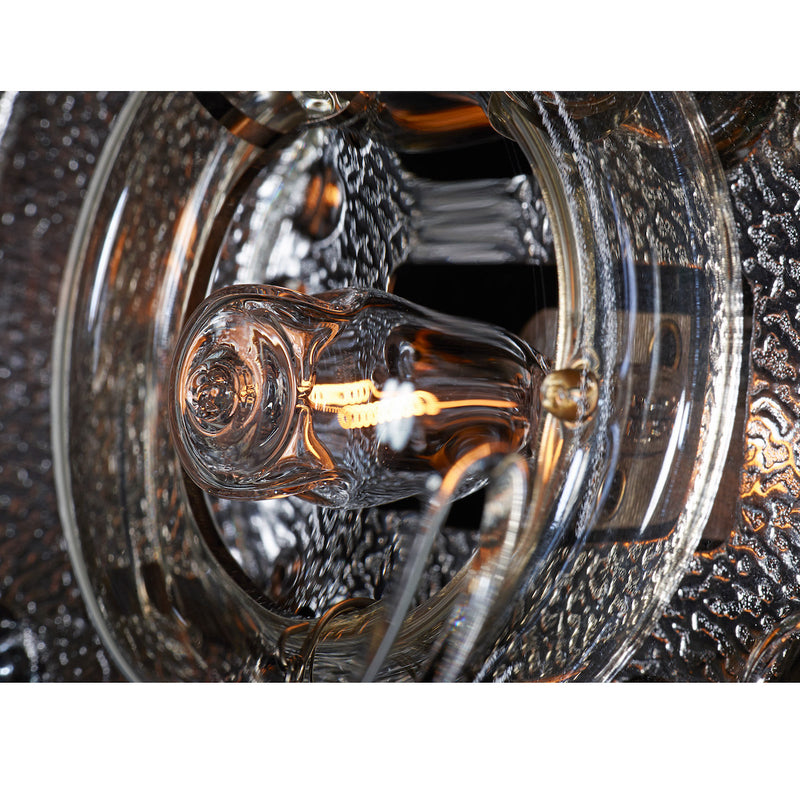

Modeling Lamp: | 300W / GX 6.35 |
Modelling Lamp Mode: | Off, free, proportional, VFC: -0.5 to -2.0 f-stop |
Fitting Type: | Elinchrom |
Display Type: | OLED |
Auto Power Dumping: | Adjusts power settings automatically in real time |
Power Stability: | +/-0.5% |

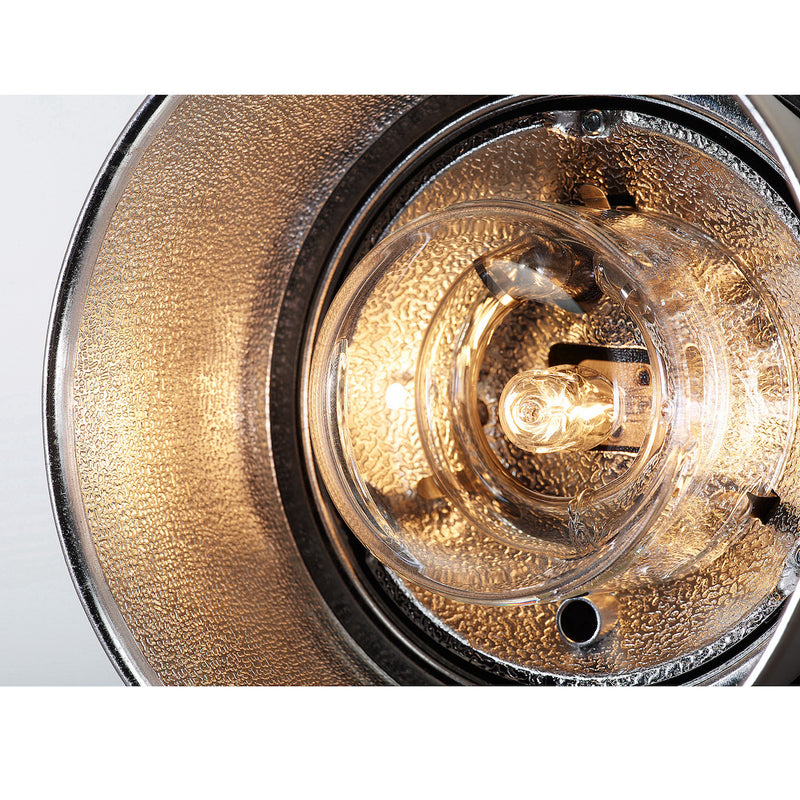

Flash Tube: | Plug-in user replaceable. SKU ELIN746 |
Glass Dome: | SKU ELIN822 |
Radio Triggering: | Skyport, 20 frequencies, 4 groups, Manual only |
Radio Range: | Indoor up to 60m. Outdoor up to 200m |
Fan Cooled: | Yes, smart pro active cooling |
Umbrella Fitting: | Centred umbrella fitting 7mm |
