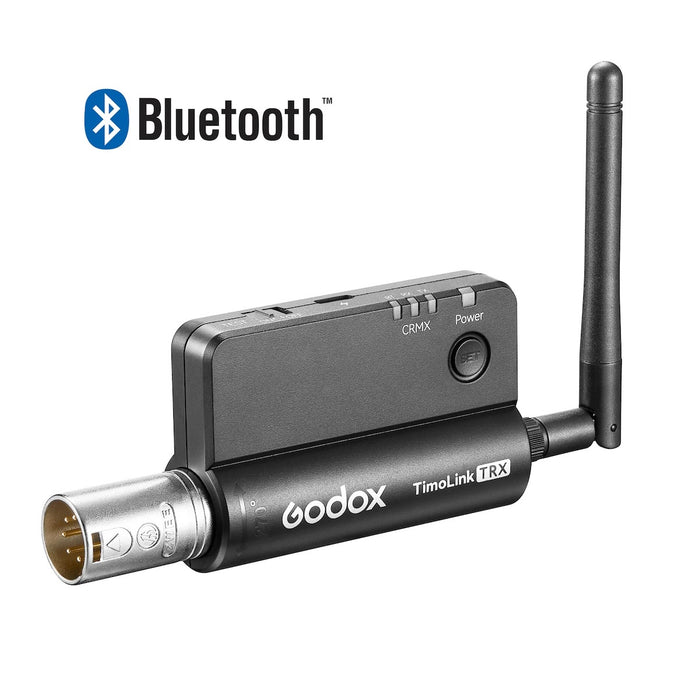

The Godox TimoLink TRX wireless DMX transceiver is designed to transmit DMX signals wirelessly to Godox or other lighting fixtures with DMX control capabilities. It allows a wired DMX console to function wirelessly by sending signals to CRMX-compatible fixtures (such as the Godox Knowled MG1200Bi and the Knowled TP series) or any fixture with a TimoLink receiver attached. The TimoLink TRX is ideal for filmmaking, broadcasting, theatre lighting, or any scenario requiring wireless DMX. Additionally, it features Bluetooth connectivity, enabling communication with an iPad or Android tablet via the Godox KNOWLED app (available on the Google Play Store or Apple App Store).
The TimoLink TRX can connect to nearly any wired DMX console, transforming it into a wireless DMX controller. It features a testing function that allows you to easily verify the status of your wireless connection, making your workflow on set more efficient. The device also includes separate “Set” and “Reset” buttons for straightforward operation.

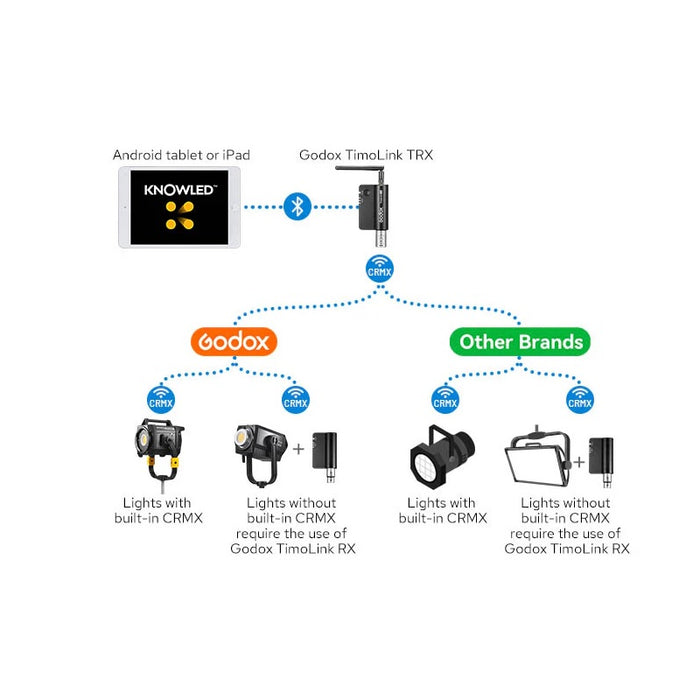

The Godox TimoLink TRX includes Bluetooth connectivity, allowing it to work with the Godox KNOWLED app on tablets (free to download from the Google Play Store and Apple App Store). The app enables direct control of CRMX-compatible lights. For lights that support DMX but lack built-in CRMX, you can use the TimoLink RX receiver to integrate them into your setup.
The Godox TimoLink system utilises automatic frequency hopping to maintain a stable CRMX signal within a 300-metre range, ensuring reliable performance even in complex shooting environments.
The mode menu lets you view and adjust the device's status. Press the "Set" and "Reset" buttons simultaneously to enter or exit this menu.
The TimoLink’s connectors can rotate 270°, allowing the module to be positioned upright regardless of the orientation of the port it is plugged into.
Model | Series | Details |
---|---|---|
F100R | KNOWLED Panel F Series | ✓ |
F200SR | KNOWLED Panel F Series | ✓ |
F200R | KNOWLED Panel F Series | ✓ |
F400R | KNOWLED Panel F Series | ✓ |
F800R | KNOWLED Panel F Series | ✓ |
F200Bi | KNOWLED Panel F Series | With TimoLink RX Receiver |
F400Bi | KNOWLED Panel F Series | With TimoLink RX Receiver |
F600Bi | KNOWLED Panel F Series | With TimoLink RX Receiver |
P300R | KNOWLED Panel P Series | ✓ |
P600BI | KNOWLED Panel P Series | ✓ |
P600R | KNOWLED Panel P Series | ✓ |
P1200R-HARD | KNOWLED Panel P Series | ✓ |
M200D | KNOWLED COB M Series | With TimoLink RX Receiver |
M200Bi | KNOWLED COB M Series | With TimoLink RX Receiver |
M300D | KNOWLED COB M Series | With TimoLink RX Receiver |
M300BI | KNOWLED COB M Series | With TimoLink RX Receiver |
M600D | KNOWLED COB M Series | With TimoLink RX Receiver |
M600BI | KNOWLED COB M Series | ✓ |
M600R | KNOWLED COB M Series | ✓ |
MG1200Bi | KNOWLED COB MG Series | ✓ |
MG1200R | KNOWLED COB MG Series | ✓ |
MG2400Bi | KNOWLED COB MG Series | ✓ |
MG2400R | KNOWLED COB MG Series | ✓ |
MS60Bi | KNOWLED COB MS Series | ✓ |
MS60R | KNOWLED COB MS Series | ✓ |
TP2R | KNOWLED Pixel Tube TP Series | ✓ |
TP4R | KNOWLED Pixel Tube TP Series | ✓ |
TP8R | KNOWLED Pixel Tube TP Series | ✓ |
AT200BI | KNOWLED Air AT Series | ✓ |
MPN: TimolinkTRX
Input Parameter: | 5V 280mA |
Colours of Signal Indicator: | 8 |
Power Supply Port: | USB Type-C |
Compatible Devices: | DMX512 Controller / DMX240 Controllers, Fixtures with DMX Functionality, Godox KNOWLED App |
DMX Plug Rotation Angle: | 270° |
CRMX Transmission Distance: | Max. 200m (In an open area) |
Bluetooth Transmission Distance: | Max. 30m (In an open area) |
Working Environment Temperature: | -20~45°C |
Dimensions: | 141mm x 96mm x 26mm |
Net. Weight: | 90g |
