Nanlite PavoSlim 240C 2x2 RGBWW LED Panel Light with CRMX
Free Lighting Workshop
Free Lighting Workshop

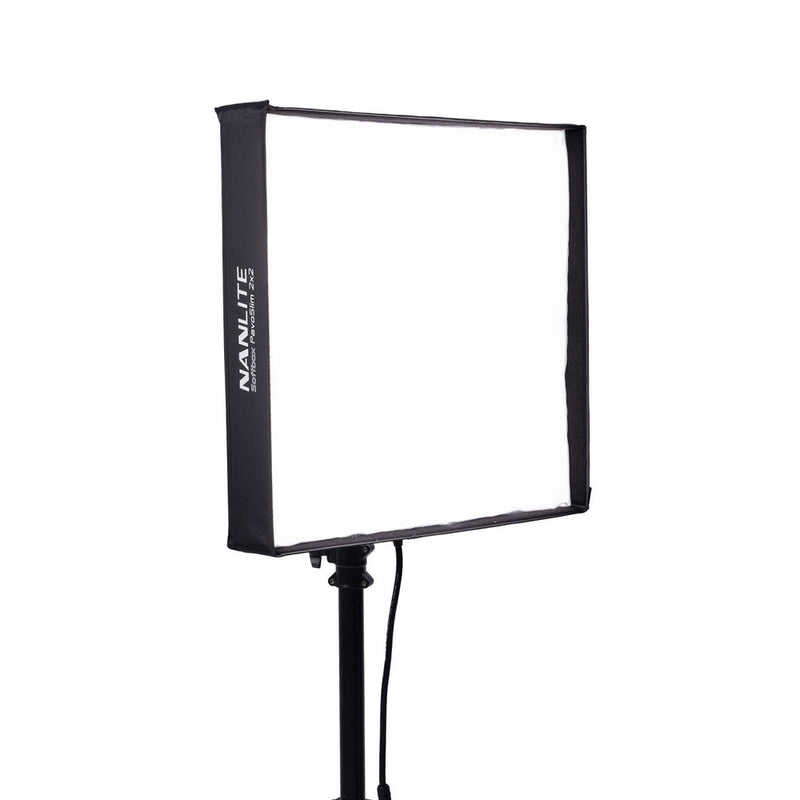

The Nanlite PavoSlim 240C is an ultra-thin, lightweight 2x2 RGBWW LED panel light. It folds down to half its size for easy storage and travel, delivering an impressive output of 24,970 lux and 2319.7 fc at 1 metre (5600K). With 0–100% dimming, a bi-colour CCT range of 2700K–7500K, and G/M adjustment of +/- 150, it’s equipped with built-in CRMX LumenRadio. The light runs on AC power or a V-Mount battery and comes with a Control Unit, super clamp, softbox, two sets of diffusions, an eggcrate grid, swivel mount, baby-pin mount, and a compact padded carrying case to keep everything safe.

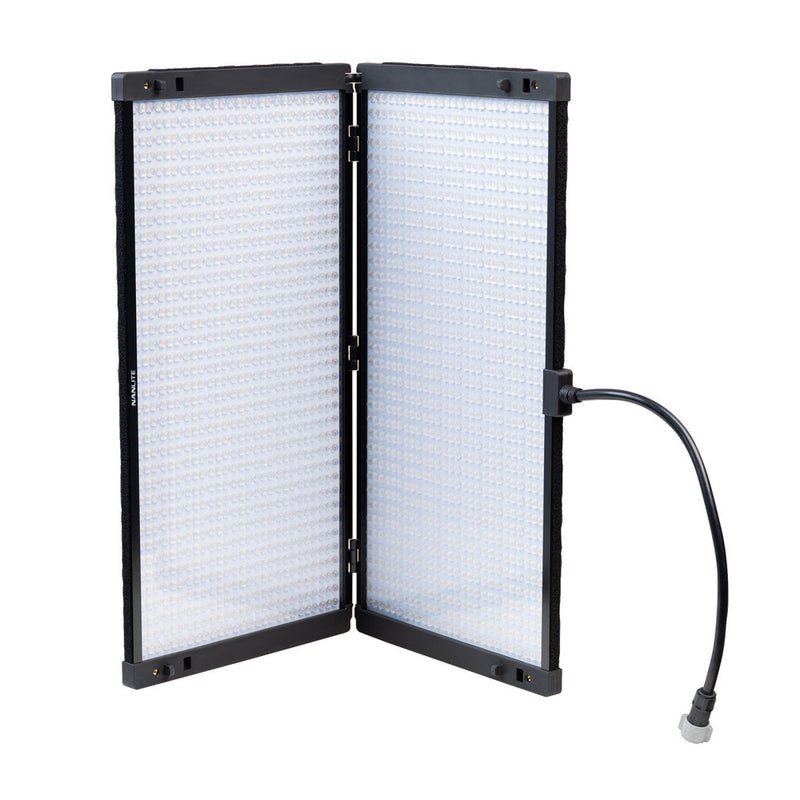

The PavoSlim 240C folds in half for easy travel and storage, but expands to a full 2x2 panel when in use. The light stays on until fully closed, adding flexibility in how it can be used.
This compact fixture expands to a larger size and sets up or breaks down quickly. It’s built from durable, heat-dissipating metal with no fan, ensuring quiet and reliable operation. The corners of the panel have 1/4"-20 mounting points for use with AS-MBA-1/4-SET magnetic mounting adapters (sold separately).

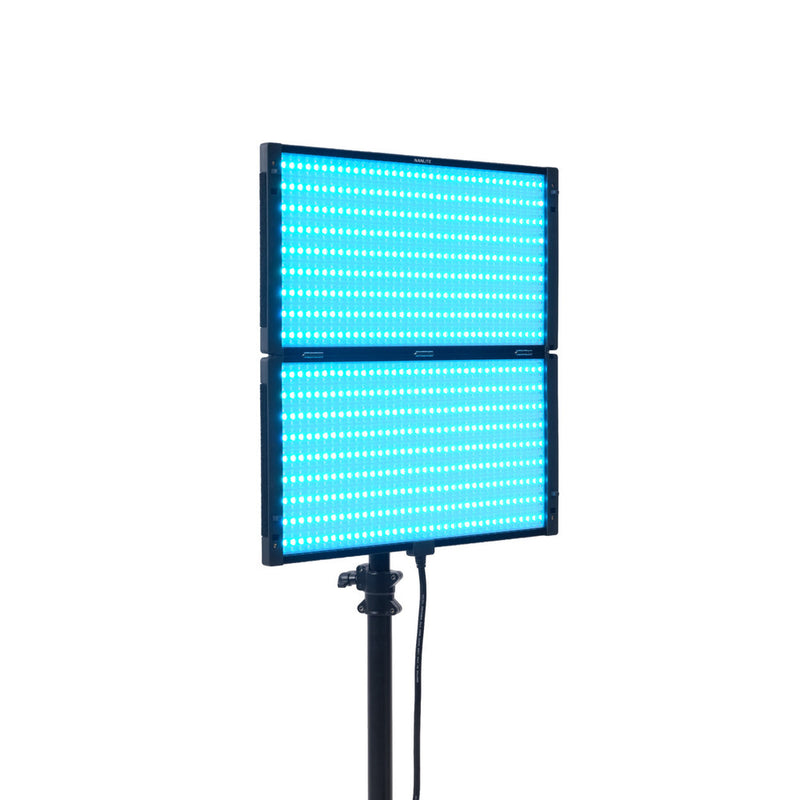

Measuring just 1.13 inches (2.86 cm) thick, the PavoSlim 240C packs a punch with its advanced optical system. It offers both bi-colour and daylight-balanced output, as well as vibrant RGB colours and 151 gel filter presets.

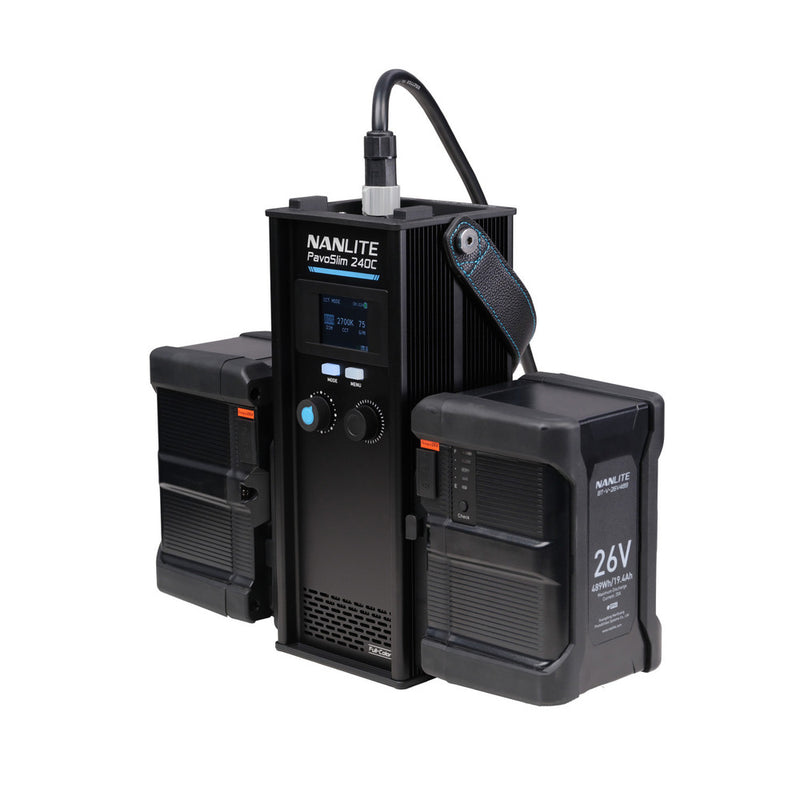

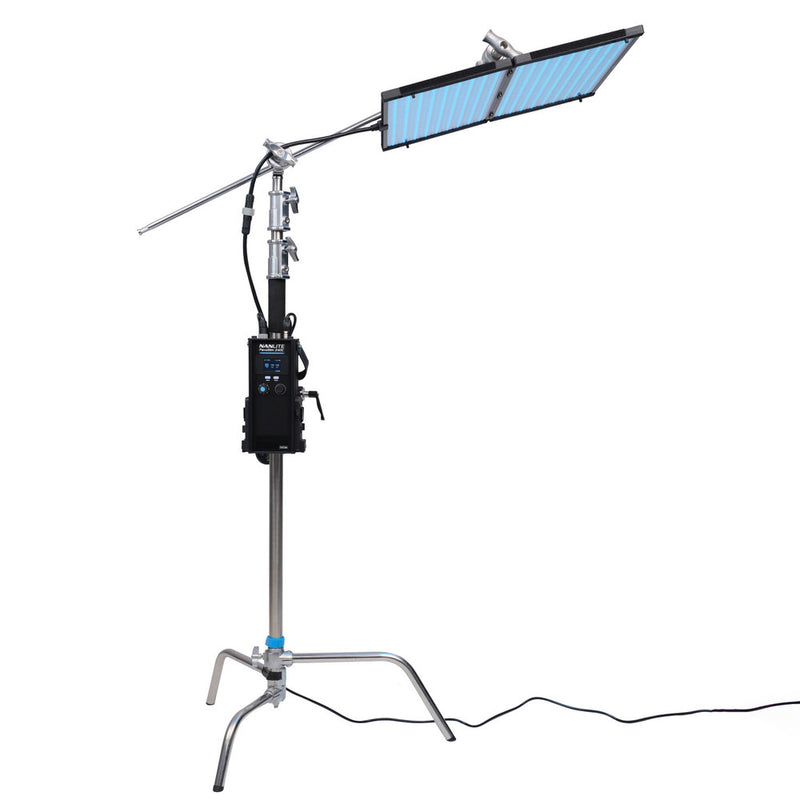

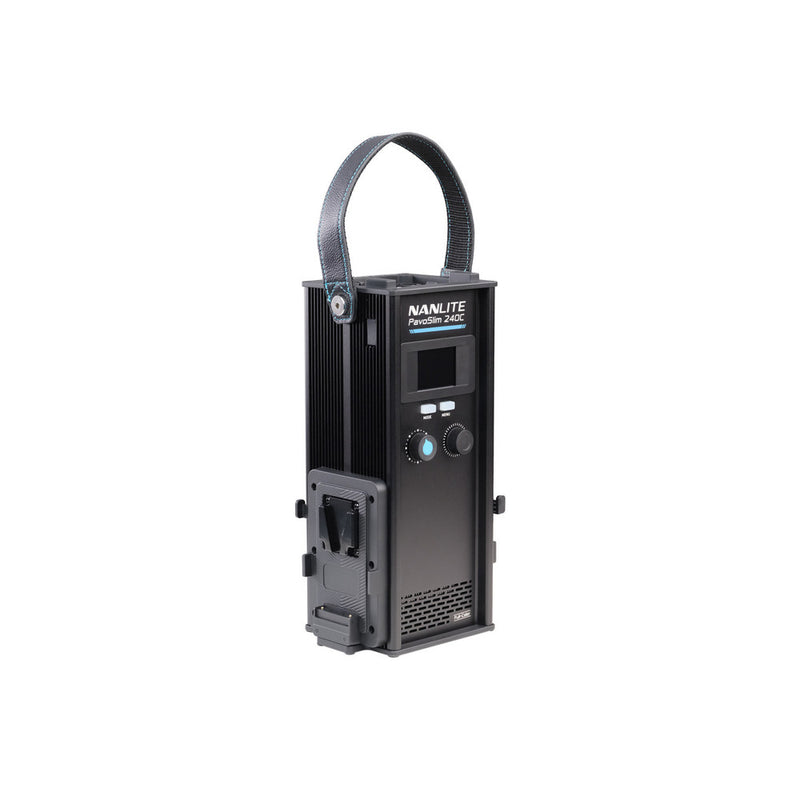

The Control Unit is easy to use, featuring intuitive buttons, knobs, and a screen. You can mount the panel high on a stand and still access controls easily, swapping batteries quickly. It has a locking DMX/RDM port, built-in CRMX LumenRadio receiver, Bluetooth compatibility with the free NANLINK app, and 2.4G compatibility for the WS-RC-C2 remote or WS-TB-1 Transmitter Box (both sold separately).

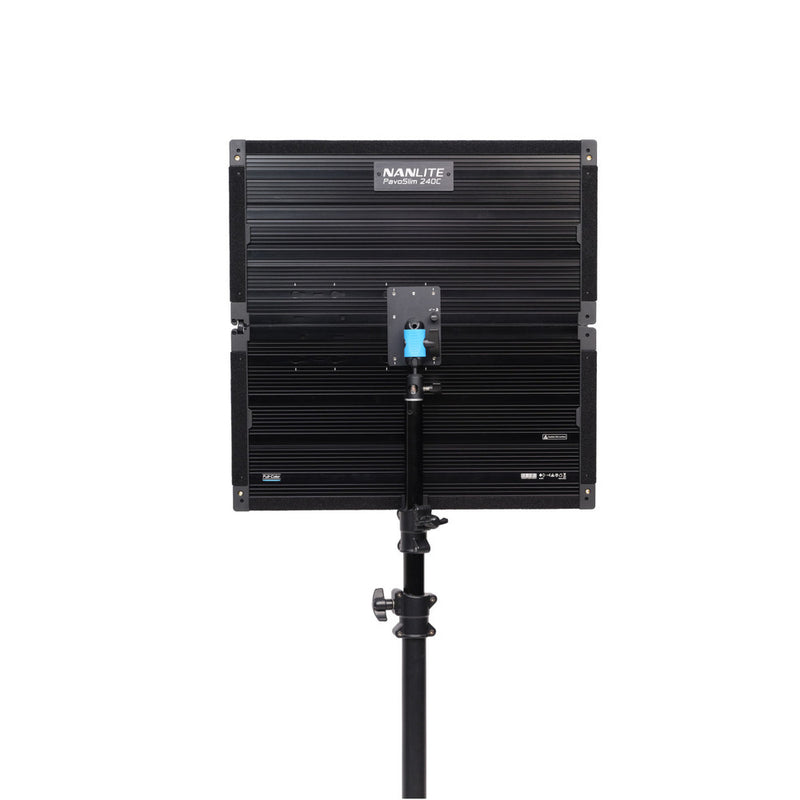

The PavoSlim’s body is made from metal and has multiple 4-pin locking plates on the back. The included mounts slide into these plates and lock securely. One mount has a fixed baby-pin, while the other has two ball joints for flexible vertical and upward positioning.

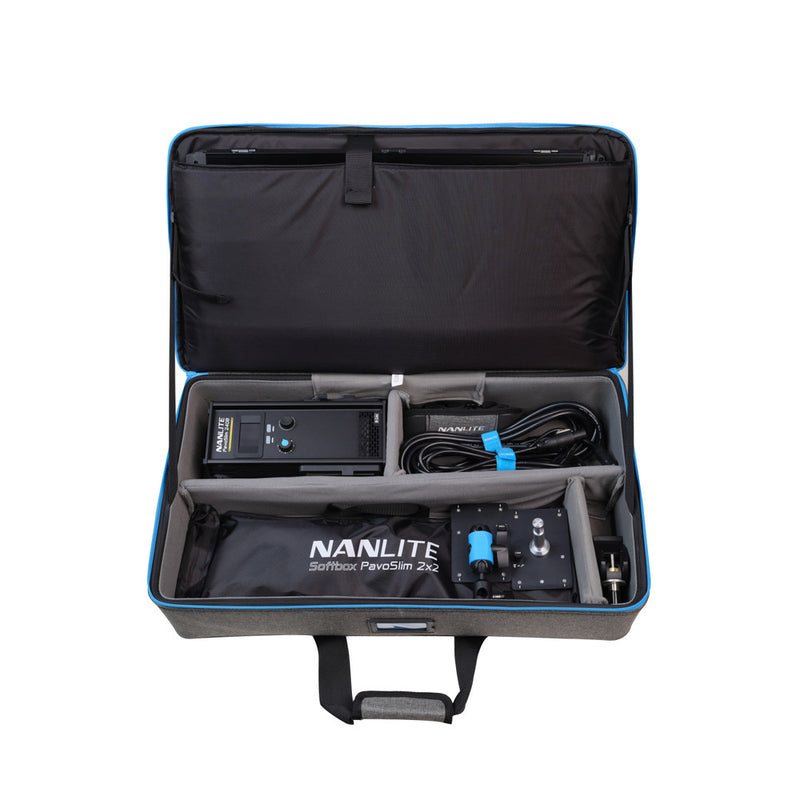

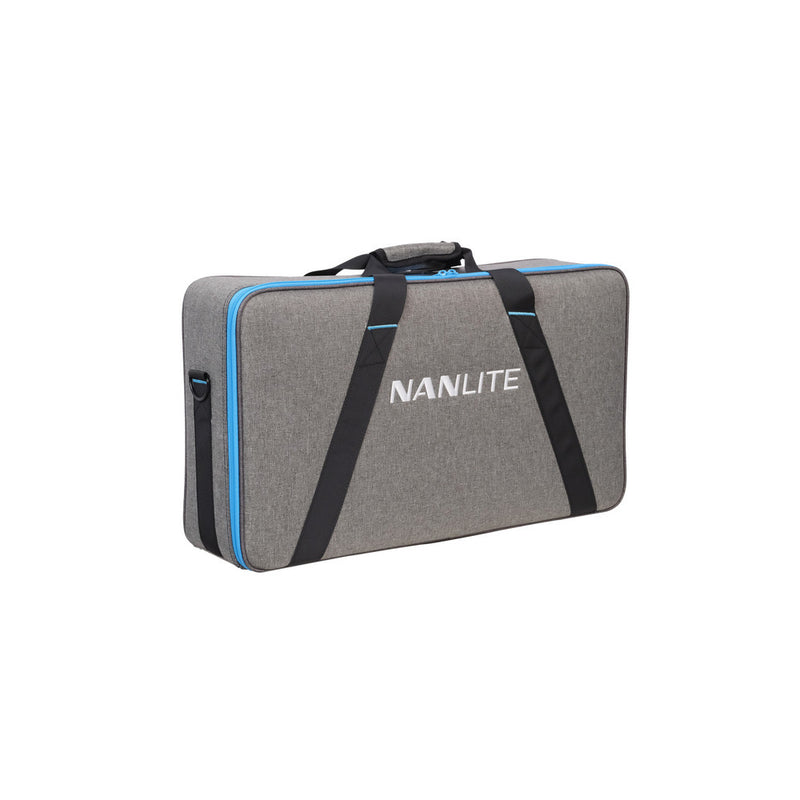

The padded carrying case is compact and lightweight, yet has room for all accessories, including the softbox, grid, and diffusers (1.5 stop and 2.5 stop). These accessories can be set up or packed away in seconds, making transportation hassle-free.
Like all Nanlite products, the PavoSlim 240C delivers highly accurate lighting performance that remains flicker-free, even at high frame rates. You can trust its colour accuracy with an average CRI of 96 and TLCI of 97.
Nanlite takes pride in designing, building, and testing every light in its own facility. This ensures the highest quality control. As a family-owned business, Nanlite is committed to eco-friendly practices and is driven by a passion for image-making and creativity.
Dimensions (Head Only): | 60.8 x 60.2 x 2.9cm |
Weight (Head Only): | 3.65kg |
Number of Heads: | 1 |
CRI: | 96 |
TLCI: | 97 |
Colour Temperature: | 2700K-7500K |
RBG: | Yes |
Dimming: | 0-100% |
DMX Control: | Yes |
Beam Angle Spot: | 60° |
