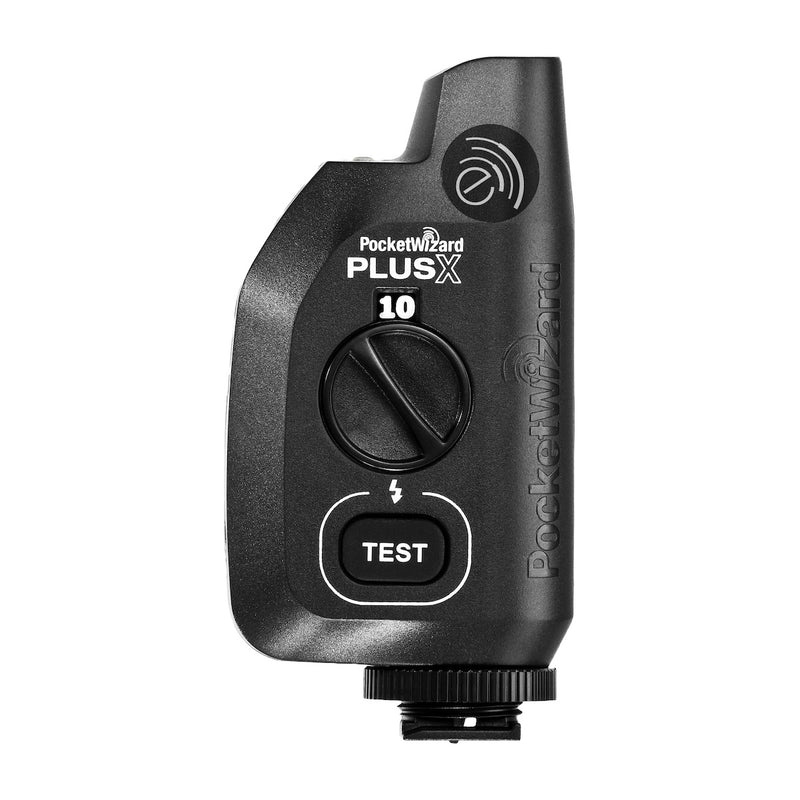

The PocketWizard PlusXe Transceiver brings unmatched range, reliability, and simplicity to your off-camera flash and remote camera setups. Leveraging PocketWizard’s E Release firmware, this powerful yet easy-to-use transceiver ensures seamless compatibility with both modern and legacy PocketWizard systems. Designed for photographers of all levels, the PlusXe delivers intuitive operation and dependable performance, making it the ideal choice for capturing perfect shots every time.
Key Features:
This is not a normal firmware update, it is an upgrade and complete protocol change in the way PocketWizard radios send and receive signals. With the E Release, radio signals now reach farther than they ever have and are less susceptible to outside RF interference for amazing reliability. Here's he full list of E release beenfits:
MPN: 13977
Frequency:: | FCC/IC 344.04 MHz / CE 433.62 MHz |
10 Channels:: | Standard Legacy Channels 1-10 or E Release Channels 1-10. Compatible with any product using the same Channels. |
Zones:: | Single Zone |
Antenna:: | Precision tuned internal coil |
Channel Setting:: | Backlit rotating dial |
Range:: | Up to 500 Meters (1600 feet) with Legacy firmware (Actual range is dependent on multiple factors including equipment, mode, environment, positioning, orientation and interference) |
Sync speed:: | Up to 1/250 (focal plane) / Up to 1/500 (leaf shutter) |
Triggering Speed:: | Up to 14.5 FPS |
Contact Time:: | 62 milliseconds in normal operation |
Transmit Output Power:: | Less than 1 milliwatt (0.001 watt) |
Power:: | Two (2) AA (IEC:LR6) alkaline recommended NiMH, NiCAD, NiZn, Lithium acceptable (these chemistries may not report battery life accurately) DO NOT USE 3.6V Li-Ion AA Cells! |
Battery life:: | Up to 100 hours (with alkaline batteries) |
Max Port Sync Voltage:: | 300 Volts (Camera/Flash Port) |
Max Current Handling: | 1.0 A peak, 0.2 A (1/5 Amp or 200 milliamp) continuous current limited |
Voltage Present:: | 3 volts, safe for use with all digital and film cameras |
USB:: | None |
Housing:: | High impact plastic with captive battery door |
Weight:: | 110 grams (3.9 ounces) with batteries installed |
Dimensions: | Height: 10.7cm (4.2”) |
Width: 5.3cm (2.1”) : | Width: 5.3cm (2.1”) |
Depth: 3.0cm (1.2”): | Depth: 3.0cm (1.2”) |
Operating Temperature:: | Above -15° C (5° F) and below 50° C (120° F). |
Storage Temperature:: | Above -30° C (-22° F) and below 85° C (185° F) (without battery) |
Input/Output:: | 3.5mm (1/8”) stereo miniphone jack, hot shoe |
Mounting:: | Hot shoe, lanyard/D-Ring loop, ¼-20 threaded insert |
In the Box:: | Quick Reference card and lanyard |
RoHS Compliant:: | Yes |
Optional Accessories:: | Flash sync cables, remote camera cables, PC cables and adapters, isolation bar, trigger buttons, foot pedal, and protective case |
